Pipe Stiffener / Sleeve Type Foundation Bolt

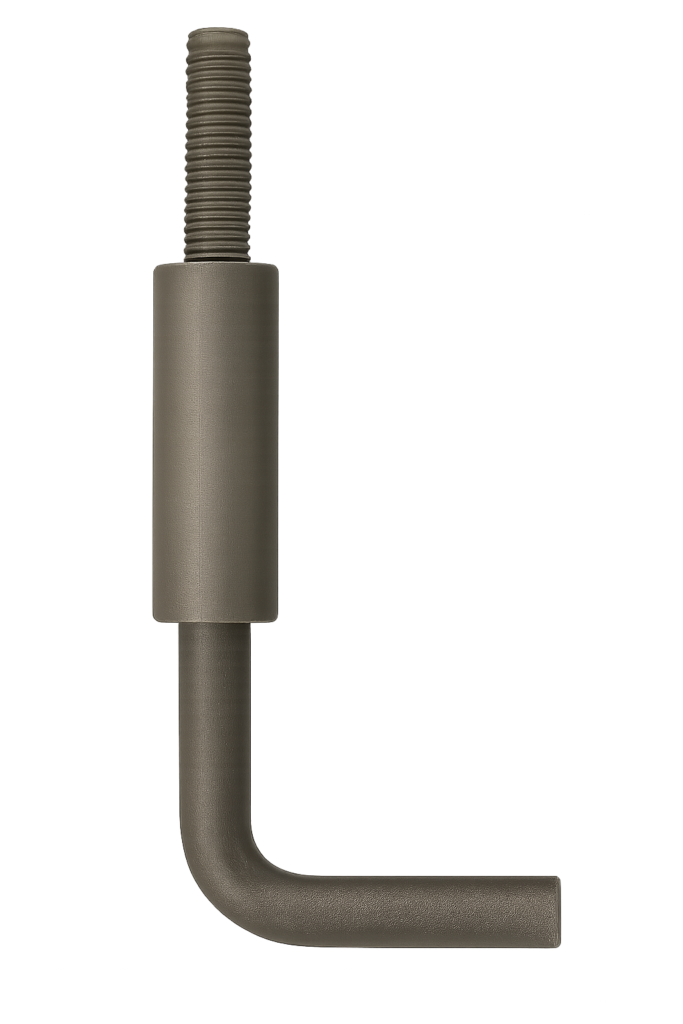

Pipe stiffener bolts, also known as sleeve-type foundation bolts, are designed to improve alignment and embedment strength in concrete foundations. These bolts include a steel rod placed inside a pipe sleeve that reinforces and protects the bolt during pouring, vibration, and load.
Key Features
- Includes pipe sleeve for precise alignment during casting
- Enhances anchoring strength and pull-out resistance
- Reduces vibration stress on anchor bolt body
- Custom sizes and weld-on plate or thread options
- Manufactured to IS, ASTM, and DIN standards

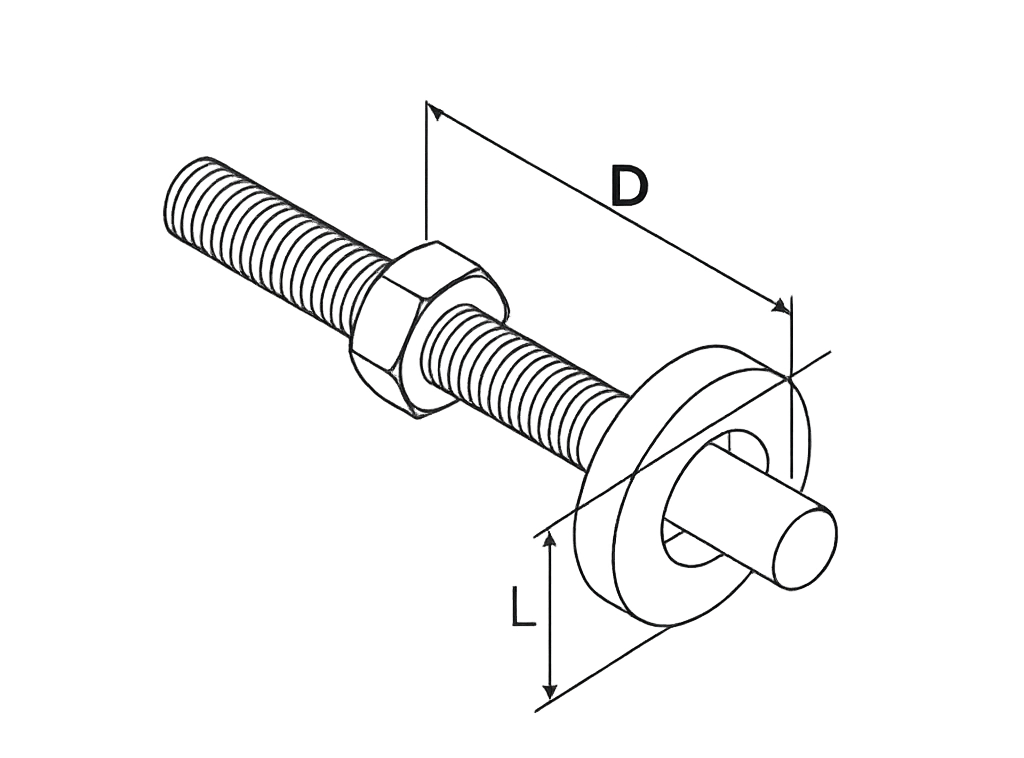

Technical Specifications
- Material: - Mild Steel, Carbon Steel, Stainless steel, Alloy steel, as per customer requirement
- Grade: - 4.6, 5.8, 8.8, 10.9, En8, Is2062, as per requirement
- Shape: - L, U, J, T, Eye, Y, Plate, Pipe Stiffener, Sag Rod, Custom
- Size: - Diameter: - M12 to M65 mm or ½” to 2.1/2”
- Length: - up to 3000 mm
- Thread type: - Metric, BSW, UNC as per customer requirement
- Thread Length: - up to 500mm
- Surface finish: - Black, Galvanized Zinc, Hot deep Galvanized, Paint, Red Oxidize, as per customer requirement
- Country of origin: - INDIA
- Usage: - Industrial, Construction, Automotive Parts

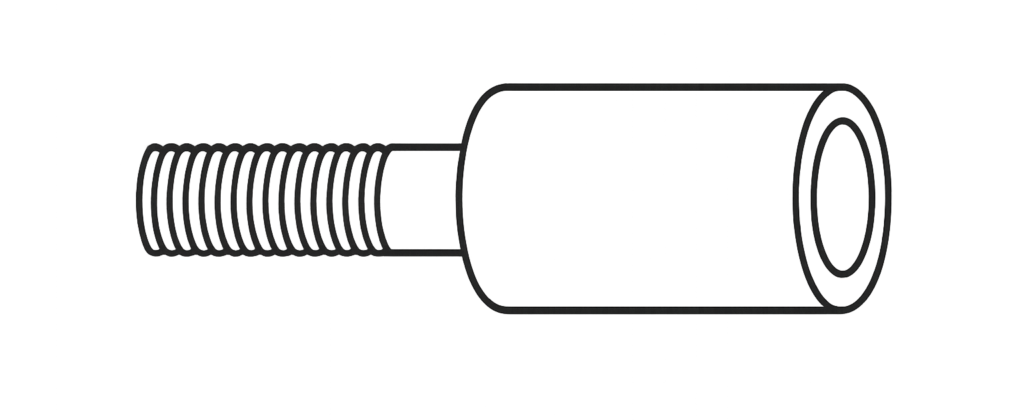

Manufacturing Method & Tolerances
Manufacturing Method:
Rod is threaded and inserted inside a steel sleeve which can be tack-welded or slotted as per design. Plates, stiffeners, or washers are welded/assembled based on the foundation requirements. Finishing is applied based on site conditions and corrosion environment.
Tolerances:
- Threading: IS 1363 / DIN 976 / ASTM A307
- Dimensional: ±1mm on rod and pipe sizes
- Sleeve depth and rod projection as per project specs
Applications & Usage
- Used in bridge and metro pillar foundations
- Ideal for machine base supports and vibration areas
- Perfect for tower base plates and pole mounting
- Used in precast elements and construction templates
- Helps with bolt alignment in deep foundation casts
Need pipe sleeve bolts for better foundation accuracy?
We manufacture sleeve-type anchor bolts with custom rod-sleeve assemblies, made to your foundation layout and load specs.
Send InquiryFaq
This bolt is designed to reinforce and support pipes, ensuring they remain stable and secure in demanding environments.
Yes, Pipe Stiffener bolts are built to withstand high pressure and are used extensively in oil, gas, and power plant applications.
Pipe Stiffener bolts are typically made from high-tensile steel, stainless steel, or carbon steel for superior strength.
The load capacity of these bolts varies based on size and material, but they are designed to carry substantial loads in pipeline and structural installations.
Yes, we offer custom lengths and threading options for Pipe Stiffener bolts to match your specific project requirements.
Yes, these bolts can be coated with galvanization or other anti-corrosion finishes to enhance their durability in harsh environments.
